Hot rolling rebar heating furnace

Features:

Application: Rolling, Forging

Heating: rebar,round bar, pipe, deformed bars

Diameter Allow: Φ20-300mm

Length Allow:Not limited

Inquiry Email Skype

Product Detail

Application Video

Product Tags

Hot rolling rebar with induction heating furnace

The worker need to put the rebars on the storage rack, the system will automatically feed material, transmit and heat rebars. All the parameters including heating temperature, heating time and heating speed is set well in the PLC remote console.

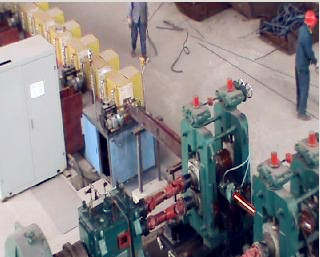

Rolling billet for rebar

Available for hot rolling the following work piece

● Pipes,tubes	● Rebar, deformed bar
● Steel bar,round bars	● Sucker rod,drill rod
● Plate, sheet	● Seamless pipe,thick-walled pipe

Hot rolling rebar heating furnace features

● Quick change type furnace: The user can replace the furnace segment within 15 minutes.

● Digital medium frequency power supply: Before sending the equipment, our factory has set all the process parameters suitable for your bars heating, user need not to set by himself. If need to change, user can operate the touch screen on the power supply easily.

● Our equipment have the functions of automatic temperature adjustment,saving process parameters and protections.

● There is infrared thermometer at the furnace discharge port, which can form closed-loop control with the power supply and reach the purpose of control the heating temperature and time.

Configuration

No.	Specification	Quantity
1	MF Power Supply	1 set
2	Capacitor Cabinet	1 set
3	Induction heater	1 set
4	Roller Table	1 set
5	Storage rack,the length is 6 meters	1 set
6	Feeding rack including transmission roller,the distance is 500mm between two rollers,the length is 6 meters	1 set
7	Infrared thermometer	1 set
8	Remote console	1 set
9	Product qualification certificate and maintenance instruction
