FOREVER Electromechanical stainless steel pipe quenching and tempering production line is a fully automatic intelligent equipment, which can save manpower and labor, increase production efficiency, improve the production quality of product parts, save energy and electricity, low noise, and simple installation, operation and maintenance. It is a good energy-saving and environmental protection induction heating equipment for users’ heat treatment workers.
The production process of stainless steel pipe quenching and tempering production line is as follows:
1. Straightening: after manually placing the stainless steel pipe on the upper feeding table and leveling, it is sent to the parallel roller table by the feeding machine in a step-by-step manner, and then it is sent to the seven-roll straightener before heat treatment for straightening. After straightening, it is sent to the mechanical tractor in front of the sensor through the parallel roller table.

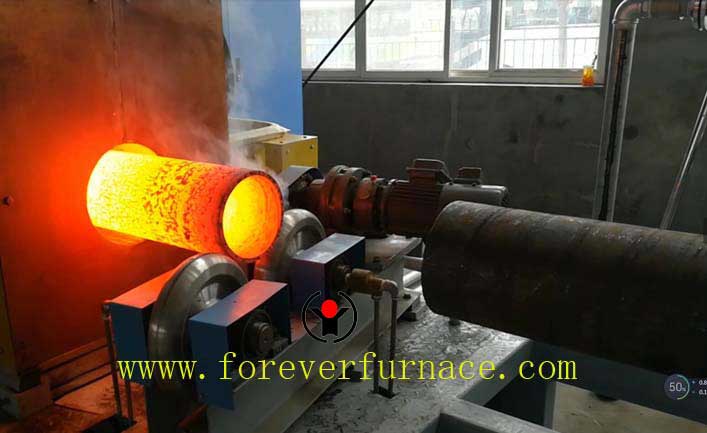

2. Induction quenching of stainless Steel pipe heat treatment equipment: through the steady speed operation of the tractor, the steel pipe is sent to the semiconductor frequency converter for induction heating of the induction heating quenching system. Through the control of the output inductor cabinet and the infrared thermometer, the steel pipe is automatically controlled by the temperature of preheating – temperature measurement – temperature rise – temperature measurement. When the quenching temperature is reached, the steel pipe enters the cooling machine for quenching, and then enters the roller table through the mechanical rear traction device, and then enters the storage The loading platform, meanwhile, separates the unqualified quenched products and completes the quenching process.
3. Tempering: the quenched steel pipe enters the loading platform through the mechanical rear traction device and is fed into the parallel roller table in a step-by-step manner. The mechanical traction machine in front of the medium frequency power sensor makes the steel pipe move at a steady speed through the traction machine. The steel pipe is sent to the sensor for tempering. After temperature measurement, it enters the tempering incubator. The thermal insulation is delayed. After tempering, it is hot straightened and then sent to the parallel roller table.
4. Cooling and straightening: the steel pipe enters the cooling bed for natural rolling cooling, and after cooling, it is sent to the straightening machine for straightening and degaussing treatment
5. Blanking inspection and warehousing of stainlesssteel pipe hardening and tempering production line.
