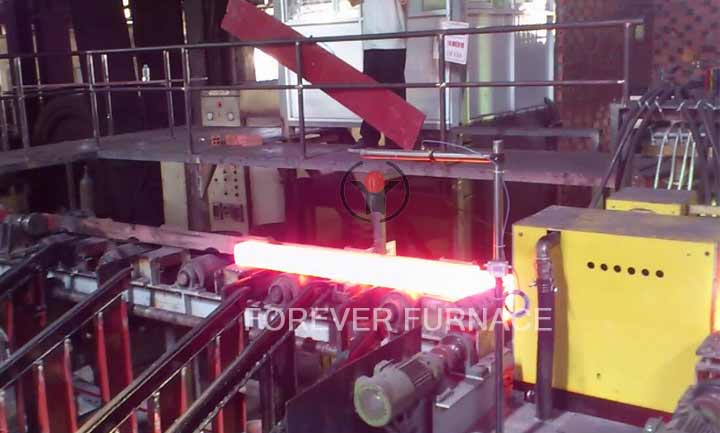

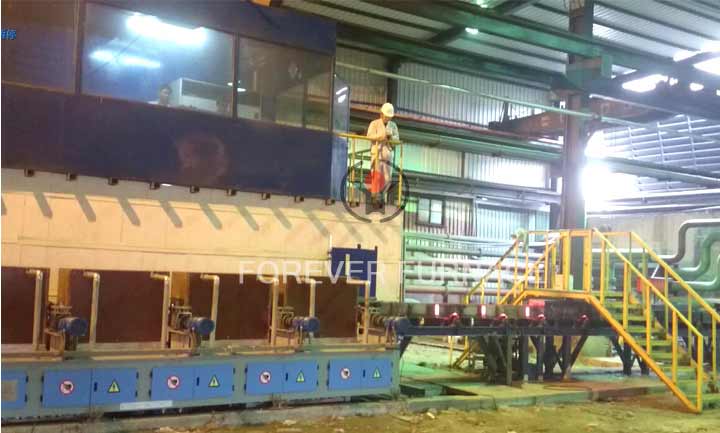

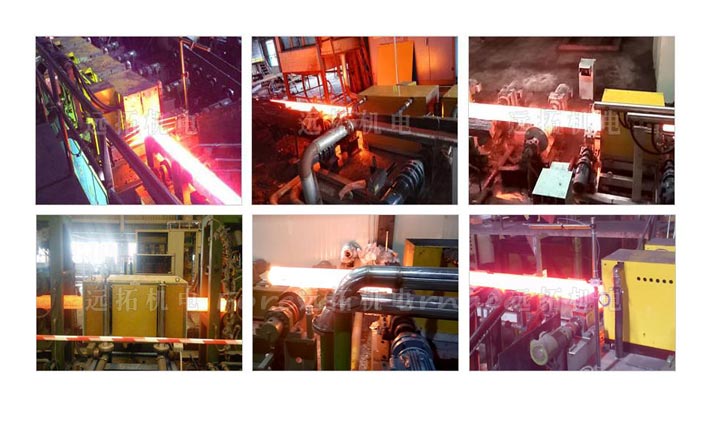

The equipment provides the required heating temperature for the steel billet rolling process through a KGPS 5000 kW medium frequency heating power supply. The steel billet generates eddy currents in the induction coil and achieves uniform temperature rise through spontaneous heating, ensuring that it reaches the ideal temperature state before entering the rolling mill.
The steel billet induction reheating furnace is designed with induction heating coils based on the actual size of the workpiece according to the customer, ensuring temperature uniformity during the heating process. The high-power configuration of KGPS 5000 kilowatts provides the required heat for steel billets in a short period of time, achieving a production efficiency of 30 tons per hour.
The steel billet induction heating equipment consists of an induction heating furnace body, a steel billet conveying system, a PLC control system, and an infrared temperature measurement system, which together form an accurate induction heating system. Meet customers’ needs for high temperature heating accuracy, temperature uniformity, and large-scale continuous production.
The steel billet induction heating furnace not only has advantages in heating speed, but also effectively controls the uniformity and stability of temperature. The PLC control system works in conjunction with the infrared temperature measurement system to monitor the surface temperature of the steel billet in real time and ensure precise control of the heating temperature through feedback adjustment.
