Can medium frequency steel billet heating furnace be used to produce 230 tons of 450mmx165mm steel billets per hour? The answer is affirmative.

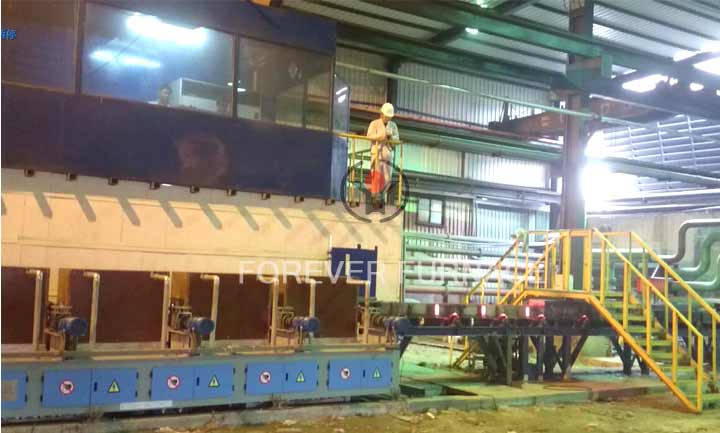

This set of steel billet heating equipment customized by Forever according to the actual needs of users is mainly used for heating steel billets with a cross-sectional size of 450mmx165mm, a length of 30000mm, and an hourly output of 230 tons. The entire equipment consists of a high-power intermediate frequency power supply, induction heating furnace body, PLC control system, infrared temperature measurement system, etc.

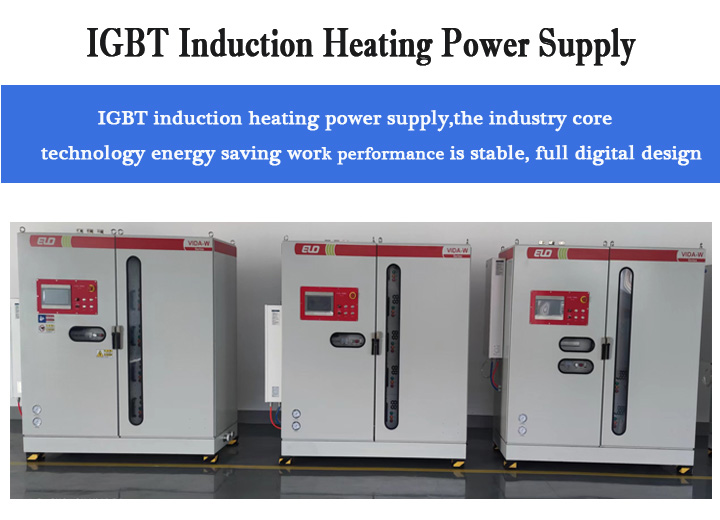

The power supply system of the steel billet induction heating equipment consists of four 4000 kW power supplies in parallel, with a total power of 16000 kW, providing stable high-power output, adapting to different frequency requirements, and meeting the requirements of steel billet heating.

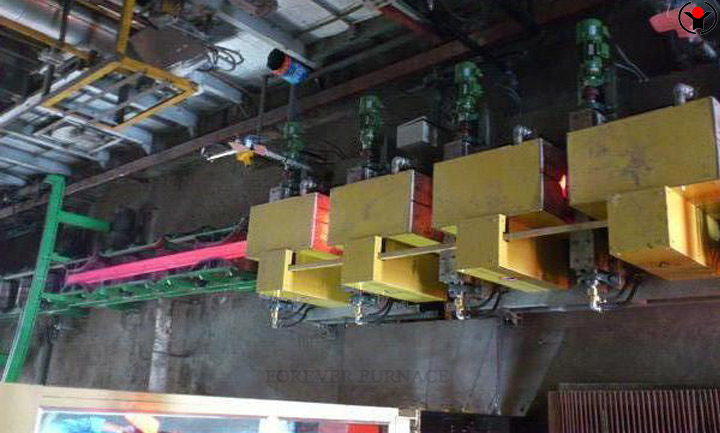

The Steel billet induction heating system adopts a contour design, using T2 oxygen free copper wrapped copper tubes with a wall thickness of 3.0mm, which have high strength and high temperature resistance characteristics. The PLC overall operation control system realizes fully automatic control. As long as the heating speed and temperature are set, one person can complete the operation of the entire production line. The entire process from ordering, production, factory acceptance, loading, shipping, installation and commissioning is tracked by dedicated personnel. Equipped with an infrared thermometer, it can automatically adjust the power supply to ensure that the temperature difference of the steel billet is controlled within the required range. When the interval between blanks is long, the system can automatically reduce the no-load power or stop waiting, saving energy.
Hebei Forever Electromechanical focuses on providing customers with induction heating system solutions and service providers.
