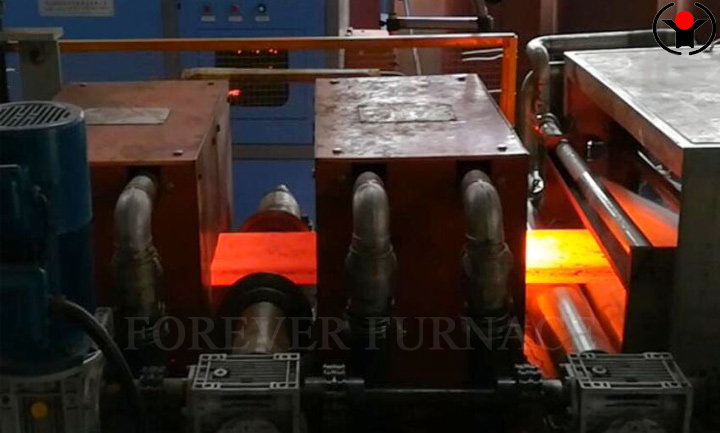

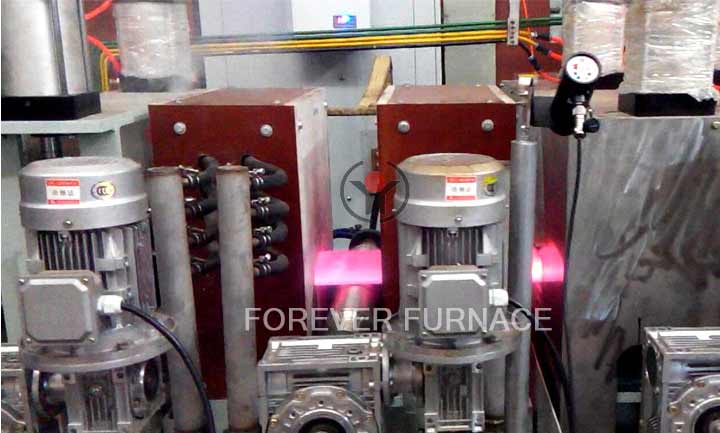

Forever Steel Plate Quenching and Tempering Production Line

The Forever Steel plate induction heat treatment furnace is customized according to customer requirements. The power supply system adopts IGBT modules with a power range of 200 to 800 kW and a frequency of 4 to 15 kHz. The production line can produce 0.6 to 2.5 tons per hour, with a suitable plate thickness range of 20 to 60mm and a width range of 80 to 500mm, which can meet the processing needs of various specifications.

This steel plate induction hardening and tempering production line equipment includes main components such as quenching induction heating power supply, tempering induction heating power supply, storage rack, conveyor rack, and PLC control system. Each component comes from well-known manufacturers, such as SIEMENS’ PLC control system, Infineon’s IGBT module, and Raytheon’s infrared thermometer, ensuring the reliability and accuracy of the equipment. The design of the roller electrical isolation system of the equipment effectively prevents the workpiece from igniting with the roller and extends the service life of the equipment.

The industrial computer system of Forever Steel sheet heat treatment machine supports real-time display of working parameters, recording and storing workpiece information, and has alarm function. The formula management function allows users to automatically call relevant settings based on different steel grades and plate parameters, simplifying the operation process and improving production efficiency.
