There are many Induction heating equipment manufacturers in China, but there are only a few large-scale manufacturers that can produce temperature raising heating circuits for continuous casting billet heating furnace. Forever electromechanical provides customized billet heating and temperature compensation equipment for users.
The power supply system is: double rectifier 12 pulse or 24 pulse kgps1000-10000kw single induction heating power supply is used independently or multiple induction heating power supplies are used in parallel.
Temperature closed-loop control system: the closed-loop control system is composed of American Raytheon infrared thermometer and German Siemens S7. The power supply is automatically adjusted according to the initial temperature and feed speed of the billet entering the inductor. Keep the heating temperature constant before discharging.
Industrial control computer system: real-time display of current working parameters and status, blank parameter memory, storage, printing, fault alarm, automatic reduction of power supply power and constant temperature and many other powerful functions.
The user needs to provide the billet diameter, length, temperature, production efficiency, etc. when consulting the billet induction reheating machine. Therefore, only the diameter of the workpiece can not determine how much power should be provided. The customer should specify the content, diameter, heating temperature, production efficiency / production beat and other relevant information of the workpiece. We will provide you with the corresponding power supply according to the relevant information provided by the customer.

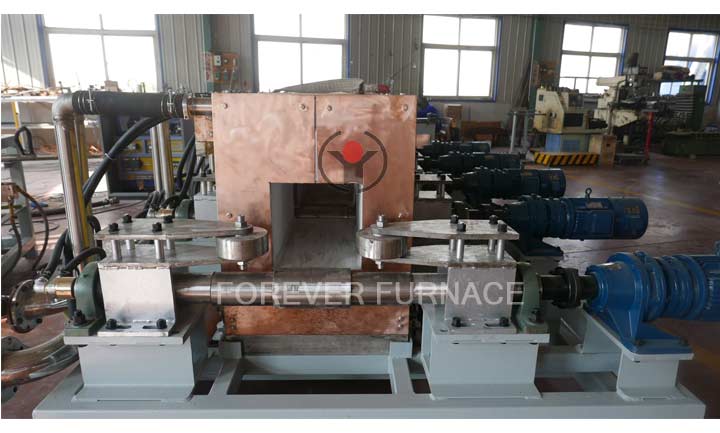

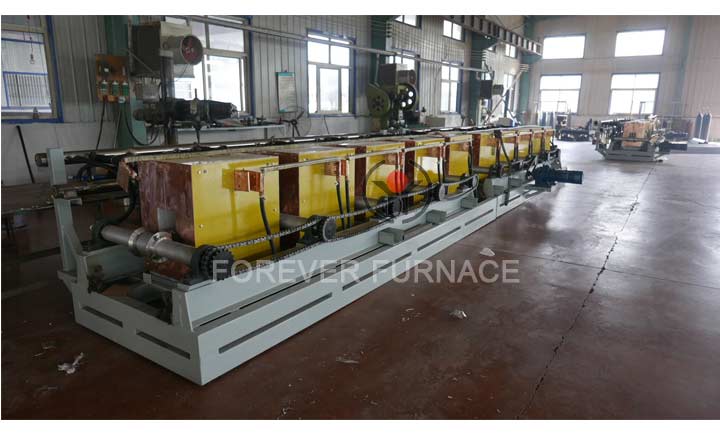

The heating circuit of billet continuous casting and rolling is composed of induction heating power supply, feeding rack, control system, induction heating system, cooling system, infrared temperature measuring device, etc. Price of intermediate frequency power supply
