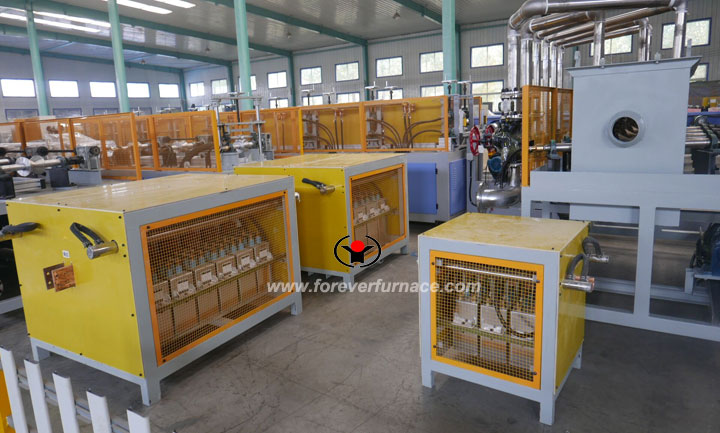

Aluminum rod induction heating furnace

Product Usage: Suitable for heating metal workpieces such as aluminum rods and profiles

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a specialized company that integrates research and development, production, and sales of aluminum rod heating furnaces. It is an early professional manufacturer of aluminum bar induction heating furnace in China. Equipment PLC fully automatic intelligent control, closed-loop temperature control for aluminum rod heating furnace, uniform heating, no overburning, deformation, crack, quality assurance, providing users with free technical solutions and quotations for aluminum rod rapid heating furnace.

The aluminium bar heating forging furnace adopts intelligent series resonant intermediate frequency power supply control features:

1. Parallel resonance design, phase shift power regulation, fully open rectification, high power factor, small harmonic components, and simple operation

2. The power supply and inductor always maintain a reliable matching, with full power output, low turn-off loss, and small reactive power component. Compared with traditional inverter power sources, it saves 15 to 30% of power.

3. Frequency conversion and load adaptation, automatic matching of induction heating equipment replacement, no manual adjustment required.

4. The cabinet is made of T2 copper bars, which have been sandblasted and bell treated, with low leakage inductance and oxidation resistance, effectively reducing line losses.

5. Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with one click.

6. The induction aluminum heating furnace has self-protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload), and the equipment has self-diagnosis function in case of any situation.
