Surface hardening stainless steel
Features:
Application: Hardening & Quenching
Material Heated:45#, stainless steel
Bar Diameter Allow: Φ20-110mm
Pipe Diameter Allow: Φ60-300mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags
Surface hardening stainless steel furnace

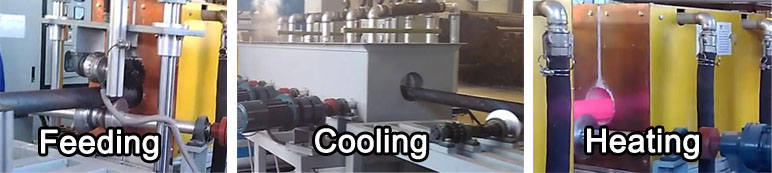

Induction surface hardening stainless steel uses induction heating and rapid cooling (quenching) to increase the hardness and durability of stainless steel. Induction is a no-contact process that quickly produces intense, localized and controllable heat. Optimizing process parameters such as heating cycles, frequencies and coil and quench design results in the best possible outcomes.
Advantages for surface hardening stainless steel furnace
● High reliability:Adopt famous brand components of IGBT power supply which reduce fault rate and make sure the equipment can run reliably.
● Safe and reliable.There are reliable protection covers for the mechanical rotating parts,which is durable and very safe for operators. Automatic protections for water temperature,water pressure,phase shortage, overcurrent and undervoltage.
● Easy installation & commission and simple operation.
● Transmission mechanism frame has sufficient strength and rigidity for ease of installation of equipment
● Feeding and discharging table is using high quality steel welded firmly, which can withstand a certain impact load.
Our commitment for surface hardening stainless steel furnace
● One year free main spare parts replacement
● Professional engineer can go to your plant for guiding installing & debugging the steel bar quenching furnace.
● A list of spare parts with the induction heating equipment for maintenance.
● Response within 24 hours for customer’s questions ！
| Diameter | Automatic Control | Power Design |
| Ø18-Ø28 mm(bar) | PLC Control | IGBT200KW Hardening |
| Ø30-Ø70mm( bar) | PLC Control | KGPS350KW Hardening |
| Ø80-Ø110( bar) | PLC Control | KGPS450KW Hardening |
| Ø16-Ø32 mm(rod) | PLC Control | IGBT200KW Hardening |
The above parameters are only for your reference as our induction heating equipment is customized as per user’s specific requirements.
