Railway tie plate induction heating
Features:
● Width : 14″, 14 3∕4″, 16〞, 18〞
● Heating temperature : 850℃±10℃
● Production capacity : 6.0 t/h
Product Detail
Application Video
Product Tags

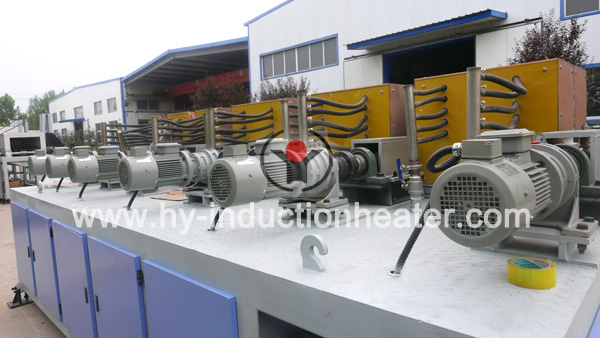

Railway tie plate induction heating equipment
Railway tie plate, also called base plate or sole plate. Mainly used for rails supporting, between flanged T rail and the crossties. When the train moves on the rail, the system load can be dispersed through the rail board.
● Product Name : Railway tie plate induction heating equipment
● Width : 14″, 14 3∕4″, 16〞, 18〞
● Heating temperature : 850℃±10℃
● Production capacity : 6.0 t/h
Configuration for Railway tie plate induction heating equipment
| No. | Name | Unit | Quantity |
| 1 | Recycling machine (including chain feeder) | Set | 1 |
| 2 | Turning machine | Set | 1 |

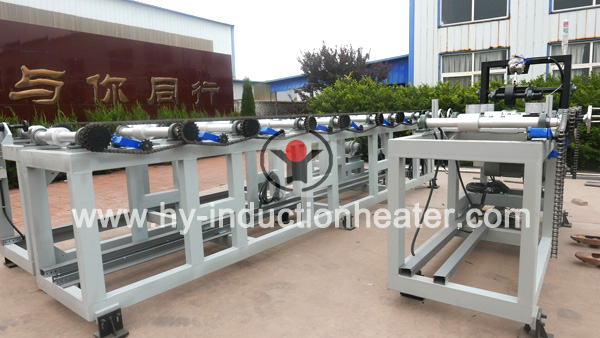

| 3 | Furnace conveyor roller | Set | 1 |
| 4 | Intelligent power supply | Set | 1 |
| 5 | Steel structure electric heating cabinet (containing 304 stainless steel water-cooled pipe) | Set | 1 |
| 6 | Induction heating coils | Set | 1 |
| Independent conveyor roller | Set | ||
| 7 | Resistance furnace (including conveyor roller) | Set | 1 |
| 8 | Infrared thermometer and display instrument | Set | 1 |
| 9 | Remote control of the central console | Set | 6 |
| 10 | Rectifier transformer | Set | 1 |
| 11 | Low-voltage distribution cabinet | Set | 3 |
| 12 | Closed cooling tower | Set | 1 |
| 13 | Emergency water tank | Set | 1 |
The railway tie plate induction heating furnace is designed and manufactured to heat the billet to the required temperature for the next process.The railway tie plate induction heating furnace is mainly composed of intermediate frequency electrical, mechanical, temperature control, automatic control systems, and cooling system.
The main control system:
The induction heating equipment adopts Siemens S7-300PLC as the control center to achieve full automatic control. Especially our closed-loop temperature control system can automatically adjust the power for IF power supply and resistance furnace through PLC and IPC processing to meet the high precision heating requirements
