Inductive Heating Equipment
Features:
Application: Forging , Rolling & Quenching
Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum
Diameter Allow: Φ20-300mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags

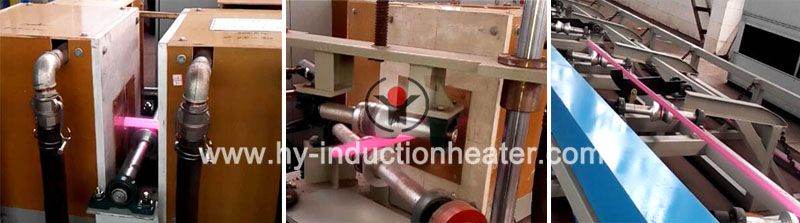

Forever inductive heating equipment is used in the process of forging, quenching and tempering, annealing, welding, bending, coating etc.The material can be steel, stainless steel, aluminium, brass, titanium. So far, our inductive heating equipment has already used in the following workpiece.
● Solid bars: Steel bar, aluminum bar, copper bar, silver bar, magnesium alloy bar, titanium alloy bar
● Pipe: Seamless pipe, welded pipe, round pipe, square pipe
● Billet: Large billet, square billet
Customer can get the advantages & flexibility in one company
A single point of contact gives customers global expertise on a variety of thermal processing applications,including:
● Hardening, tempering and annealing
● Billet and bar forging and warm forming
● Stress relieving and pre-heating
● Strip and slab heating
● Copper tube annealing
Main configuration for Forever inductive heating equipment
● Solid state induction heating power supply
● Induction heating coils
● Optional remote control
● Optional automatic feeder and discharging device
● Optional infrared thermometer
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
As our induction heater is all customized, the above parameters are only for your reference.
