Induction heating billet
Features:
Process: Continuous Casting & Rolling
Application: Increasing Temp. of Billet online
Material Heated:Carbon Steel & Alloy Steel
Product Detail
Application Video
Product Tags
Induction heating billet rolling furnace
Forever induction heating billet furnace has two applications:
1.Heating billet from room temperature to rolling temperature.
2.Continuous casting and rolling process: After the billet discharging the continuous casting machine(CDM), the heat will lose, so we need to regain heat for billet rolling. Then our billet reheating furnace can reheat the steel billet from 700-800℃ to 1000-1200℃ to realize online heating.

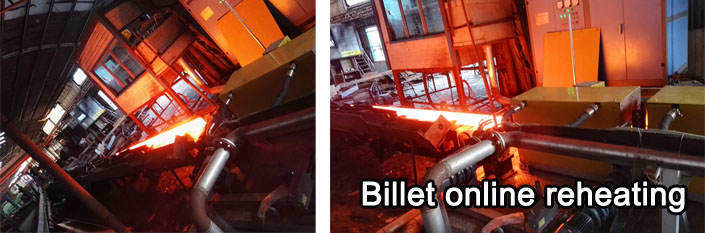

Induction billet heating system field working
Induction heating billet with electric furnace
● High heating speed, no preheating time.
● Oxidation with less decarburization
● Energy saving, less pollution
● High degree of automation, full automatic operation can be realized
● Heating temperature uniformity, high control precision
● Inline increasing the temperature of billet from 700-800℃ to 1000-1200℃.
Service commitment for Induction billet heating furnace
● Once you buy our billet induction heating equipment, we will arrange one sales person and one technician to serve you.
● We will send experienced engineer to your factory to install and adjust the equipment.At the same them,we will give technical training about how to operate and maintain steel billet induction heating furnace until user can master it.
● Forever provides 12 months warranty period and long term technical support and spare parts service.
● Forever will provide a list of spare parts free of charge.
● Forever will call our customers to track the running status of steel billet induction heating furnace every 15 days.
● If the equipment need to be repaired in customer’s factory,we will send technician to solve it.
Successful cases:
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
As our billet induction heating furnace is exactly designed as per customer’s requirement, every induction billet heating furnace is different. Please tell us your requirement, we will be glad to help you to choose quality induction billet heating furnace at reasonable prices.
