Sucker rod hardening and tempering furnace

Sucker rod  hardening and tempering furnace

Features:

Material  4142、4138、Y4320、API11B
Length 5.0-9.144m
Diameter 15.88  19.05  22.23  25.4  28.58

Product Detail

Application Video

Product Tags

Controlled by PLC system, Forever Sucker rod hardening and tempering furnace  can achieve automatic feeding, heating, cooling, tempering, discharging and receiving sucker rods. At the time time, the production parameters including heating temperature, power,voltage can be recorded by the PLC system of sucker rod hardening and tempering furnace.

Basic information for sucker rod hardening and tempering furnace

Material  41424138Y4320API11B
Length 5.0-9.144m
Diameter 15.88  19.05  22.23  25.4  28.58
Efficiency 21pcs/hour
Control system Closed-loop temperature control

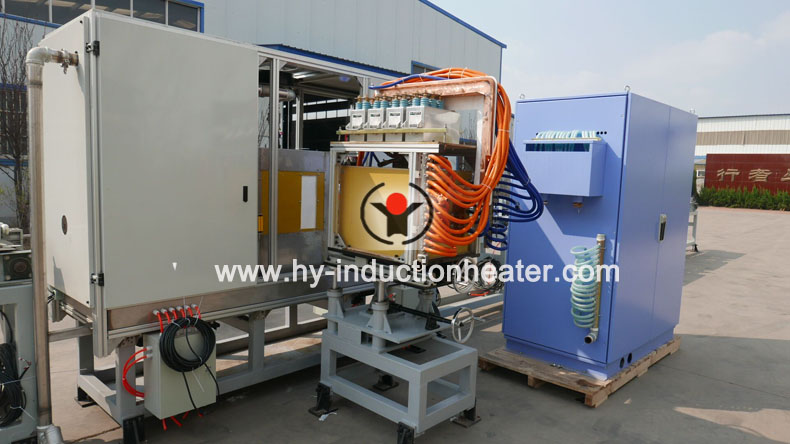

sucker hardening and tempering suppliers

Working process for sucker bar hardening and tempering machine

Lift the sucker rods on the storage platform →Transmission roller table→Induction heating→-Cooling in water spray tank→Transmission roller table→Induction heating for tempering→Air cooling device to cooled to 200℃→Secondary tempering for heating the ends→Discharging device—Receiving sucker rods.

Using all-digital constant power IGBT series air-cooled IF power supply, the core technology is the intelligent microcomputer IF control board. Standard series plug-in circuit boards makes maintenance extremely convenient. The control part is mainly composed of regulator, phase-shift controller, protection circuit, start-up circuit, frequency tracking, inverter pulse, pulse amplification and power drive.

Power input section contains a set of automatic tracking rectifier device, the signal tracking and sampling parts are from the inductor and DC filter device. The input control signal is designed to standard voltage and current signals control mode. Using double closed-loop PI regulator which take voltage regulation for the outside loop and current regulation as inside loop.The output current fluctuations is small. Constant power output can ensure the maximum efficiency of the furnace while operation.

http://www.hy-inductionheater.com/induction-heat-treating

Rectification control circuit and all digital trigger minimize the non-characteristic harmonics, reducing grid pollution.

Power inverter part uses voltage feedback mode, and the power regulation uses voltage regulator, which is adjust through the voltage of 0 ~ 10V to power. After comparing the output power and setting power, the result will be fed back to power automatic control system. It has a strong ability of anti-interference.

Make full use of the intelligent function of the single chip computer, and make up the protective measures with complete functions.

cases

    Diameter Automatic Control Power Design
    Ø18-Ø28 mm(bar) PLC Control IGBT200KW Hardening
    Ø30-Ø70mm( bar) PLC Control KGPS350KW Hardening
    Ø80-Ø110( bar) PLC Control KGPS450KW Hardening
    Ø16-Ø32 mm(rod) PLC Control IGBT200KW Hardening
    Steel bar diameter Automatic Control Power Design
    Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
    Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
    Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
    Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
    Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering

    http://www.hy-inductionheater.com/products/hardening-and-tempering-furnace.html

    http://www.hy-inductionheater.com/products/long-bar-hardening-and-tempering-production-line.html http://www.hy-inductionheater.com/ customer
