Induction Heating Furnace
Features:
Application: Forging , Forging , Rolling & Quenching
Heating: Bar,flat plate,bar end heating, flat bar end, pipe ends,etc.
Diameter Allow: Φ20-300mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags

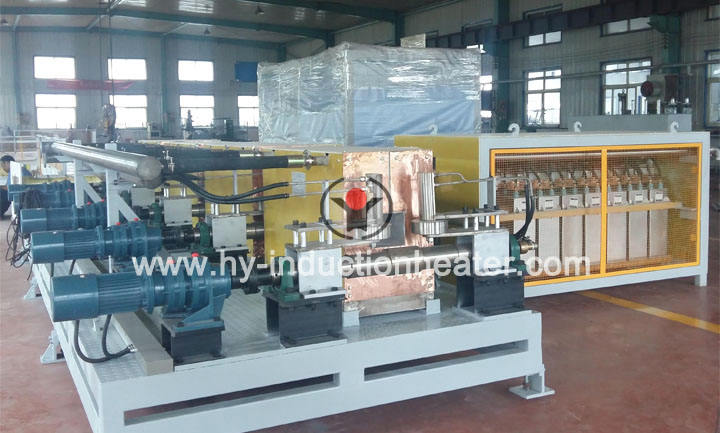

Induction Heating Furnace Manufacturers
Forever, a leading manufacturer of induction heating furnace which is manufactured as per user’s needs with full automatic system using PLC & digital display.
Induction heating is an accurate, fast, repeatable, efficient, non-contact technique for heating metals or any other electrically-conductive materials.
Applications
- Forging & forming: Suitable for bar, pipe, plate, slab, billet, auto parts, fasteners
- Surface quenching: Suitable for Shaft, long bar, long pipe, sucker rod, drill pipe, drill rod
- Annealing: Suitable for Tube, pipe, pipeline, copper pipe
- Hardening & tempering: Suitable forDrill pipe, drill rod, piston rod, bolt, shaft
- Special application: Bar heating used for forging steel balls, rolling steel balls.
Characteristics
- It is well know and best method of heating treatment what metal material adopt for medium frequency heating.
- Heating fast, reduce production cost , high efficiency and very easy to operator;
- Lower pollution , conforming to environmental standard requirement ;
- Fully automatic to make sure product quality and achieve semi and fully automatic
Successful cases
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
As our induction heater is all customized, the above parameters are only for your reference.
Welcome to contact us at tom@foreverfurnace.com for more detailed price & solution.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
