Heating with induction
Features:
Application: Forging , Rolling & Quenching
Material: Carbon steel, Brass,Iron,Alloy steel,Stainless steel,Aluminum
Diameter Allow: Φ20-300mm
Length Allow:Not limited
Product Detail
Application Video
Product Tags

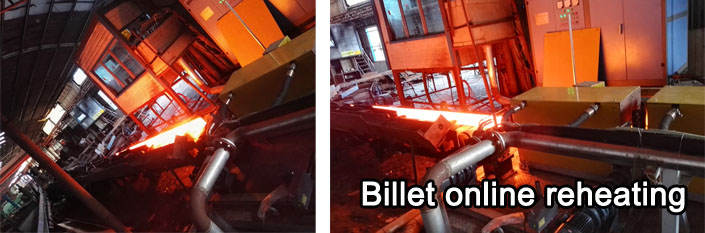

Heating with induction for bars,billet,tubes
Induction heating is efficient, easily controlled, uses no energy when not heating, and puts the heat where you want it, when you want it. No idle time, no massive refractories to heat, and close coupling enables you to use energy in the best possible way.
Forever induction heating systems are used for hot working of steel,stainless steel, brass, copper, aluminium, titanium. They are designed to heat round or rectangular billets, flat bars, bars, bars end, tubes, wires or sheets.
The systems are used in the process of forging, quenching and tempering, annealing, welding, bending, coating etc.
Customer can get the advantages & flexibility in one company
A single point of contact gives customers global expertise on a variety of thermal processing applications,including:
● Hardening, tempering and annealing
● Billet and bar forging and warm forming
● Stress relieving and pre-heating
● Strip and slab heating
● Copper tube annealing
Service
● The efficient induction heating equipment is as much important as the professional service. Our service team ensures quick and solid response.
● All important components are in our stock. We offer training, maintenance and access to spare parts.
● We also offer remote monitoring of our systems thought the internet.
● The company has years of experience in repairs, modifications, and upgrades of old frequency converters coming from well known manufacturers.
Successful cases
| Bar Diameter | Bar Length | Heating Temp. | Production capacity |
| Φ36-45mm | 1500mm | 1125°C ± 25 | 3T/H |
| Ø60mm | 6000mm | 1200℃ | 4.4T/H |
| Ø70mm | 6000mm | 1200℃ | 5.3T/H |
| Ø80mm | 6000mm | 1200℃ | 6T/H |
| Billet size | Billet length | Heating Temp. | Production capacity |
| 60*60mm2 | 3m-4 m | 1000℃-1100℃ | 25T/H |
| 75*75mm2 | 3-6 m | Room Temp.-1100℃ | 25T/H |
| 100*100mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 120*120mm2 | 750℃-1100℃ | 30T/H | |
| 120*120mm2 | 11.5-12.5m | 950℃-1150℃ | 90T/H |
| 125*125mm2 | 6 m | Room Temp.-1200℃ | 8T/H |
| 125*125mm2 | 2 m | 750℃-1000℃ | 7T/H |
| 130*130mm2 | 6 m | 950℃-1150℃ | 50T/H |
| 135*135mm2 | 6 m | 950℃-1150℃ | 100T/H |
| 150*150mm2 | 11.5-12.5m | 950℃-1150℃ | 70T/H |
As our induction heater is all customized, the above parameters are only for your reference.
