Induction pipe heating furnace
Features:
| Application | Pipe heating, annealing, hardening,coating |
| Power | 100KW-8000KW |
| Non standard | Professional customization |
| Temp.control | Infrared thermometer |
Product Detail
Application Video
Product Tags
Product Name: Induction pipe heating furnace
Typical application:
Forever manufacture and supply a broad range of induction pipe heating furnace for pipe and tube producers who have benefited from Forever advanced induction heating process and thoughtful after-sales service.

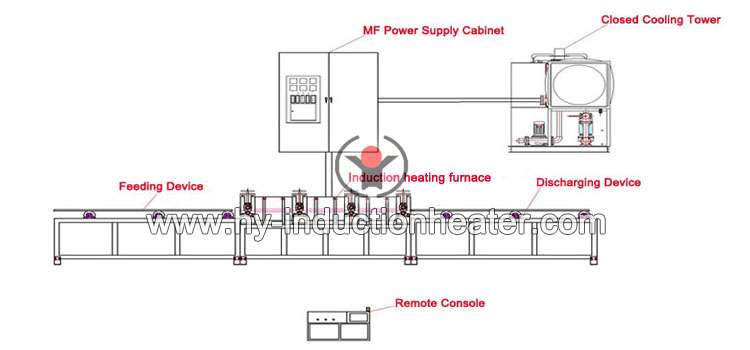

In addition to induction pipe heating furnace, Forever provides the complete system from load tables to exit conveyors. From the production to installation and final commissioning of the induction heating system, let Forever be your single source supplier.
Advantages of our induction pipe heating furnace include:
● Available in various ranges 100 KW-8000 KW.
● Suitable for ferrous& non-ferrous metals.
● For pipe of 25 mm-350 mm diameter.
● No need preheating time, instant start and stop.
● Advanced German Siemens PLC control, power & temperature control.
● High efficiency.
● Provide the most suitable pipe heating solutions.
Induction induction pipe heating furnace parameters reference
| OD(mm) | Power(kw) | Frequency(khz) | Temperature(℃) | Heating efficiency(kg/h) | Power Consumption(kw/h) |
| 5-12 | 50 | 10-40 | 200-1250 | 138 | ＜360 |
| 5-30 | 100 | 4-40 | 200-1250 | 278 | ＜360 |
| 12-40 | 160 | 4-20 | 200-1250 | 445 | ＜360 |
| 30-80 | 250 | 1-4 | 200-1250 | 698 | ＜360 |
| 50-100 | 500 | 0.5-2.5 | 200-1250 | 1388 | ＜360 |
| 80-100 | 1000 | 0.5-1 | 200-1250 | 2778 | ＜360 |
| ＞100 | ＞1000 | 0.2-0.5 | 200-1250 | ＞2778 | ＜360 |
Forever goal is to provide our customers with induction heat treating equipment that meet or exceed their quality and service requirements. As a business partner, Forever Furnace continuously strive to improve the quality, delivery time and cost efficient processing of our induction heating furnace.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
